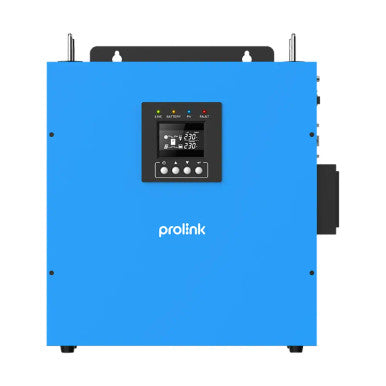

PROLINK Pure Sinewave Inverter | IPS3003

PROLINK Pure Sinewave Inverter | IPS3003

Vendor: PROLINK
SKU: 78130259
$493.00
$495.00
$493.00
(-0%)
Subtotal: $493.00

Free Shipping

PROLINK Pure Sinewave Inverter | IPS3003

PROLINK Pure Sinewave Inverter | IPS3003

$495.00 $493.00
PROLINK Pure Sinewave Inverter | IPS3003

PROLINK Pure Sinewave Inverter | IPS3003

$495.00 $493.00
Description

PROLINK Pure Sinewave Inverter | IPS3003



Specifications :

Rated Power 3000VA/2400W
Dimension (W x H x D) (mm) 385 x 382 x 148
Net Weight (kgs) 29

INPUT

Nominal Voltage 220-240Vac
Voltage Range 170 ~280Vac(narrow) 90~280Vac(wide)
Frequency 50/60Hz (Auto sensing)

OUTPUT

Nominal Voltage (Batt.mode) 220-240Vac
Frequency Range(batt.mode) 50Hz/60Hz ±1%
Waveform (Batt.mode) Pure Sine Wave
Transfer Time Narrow mode<8ms Wide mode<40ms
Overload Capability 1min@ >110% 0s@>120%
Overload Protection Circuit breaker or inner firmware protection
Protection Discharge, over-charged, over-load, short-circuit protection

BATTERY

Nominal Battery Voltage 24Vdc
Float Charging Voltage 27V
Charging Algorithm 3-stage charging
Charging Current 10A/20A(default)/30A/40A

INDICATORS & MANAGEMENT

Display LCD
Alarm Batt. Mode, low battery, overload, fault, etc
Auto Recharge Yes
Auto Restart Yes
Power Management Software Yes
RS232 Yes
